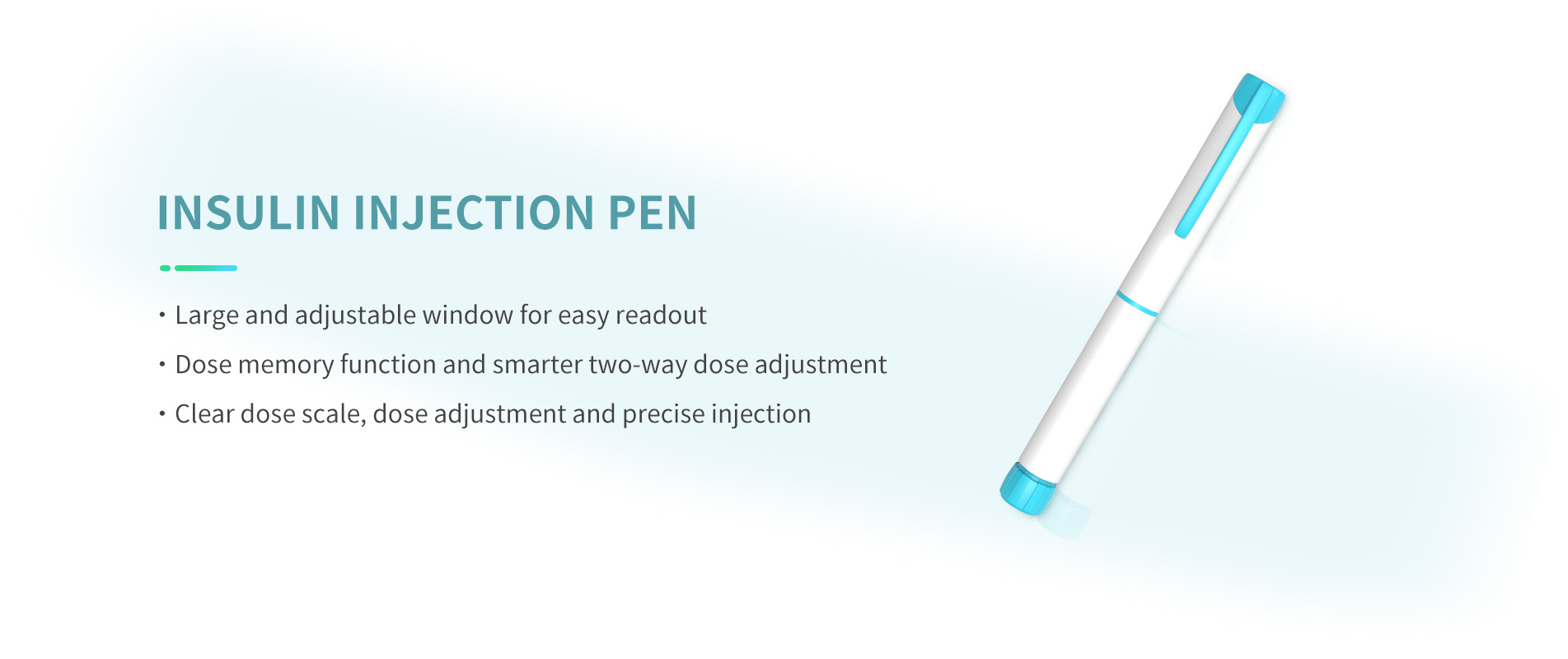

Insulin Injection Pen - Chronic disease management terminal

What does an insulininsulin pen do?

How Popular Are Biologic Drugs In Various Treatments?

Biologic Drugs Have Gained Increasing PopularityAcross Various Therapeutic Areas, Particularly InDiabetes, Aut-oimmune Diseases, Oncology Treatment,And Emergen-cy Care. However, Biologic TherapiesCurrently Require-Administration Via Injection Or Infusion. This Leads To A Potentially Higher Treatment Burden Compared To More Traditional Oral Medications.

Are You Still Worried About The High Cost Of Treatment?

To Alleviate This Burden, Pharmaceutical Companies Have Developed Self-Injection Drug Delivery Methods That Enable Patients To Bypass Clinical Infusion. This Is Especially Advantageous In Inclement Weather And For Patients Undergoing Long-Distance Medical Treatment As It Helps Reduce The Risk Of Hospital-Acquired Infec-tions While Improving Patient Adherence To Treatment.

How Effective Are Self-Injections?

The Effectiveness Of Self-Injection Therapy Relies On Pa-tients' Ability To Administer Injections AccuratelyAnd Confidently. Additionally, Affordable Treatment Costs Play A Crucial Role In Alleviating The Overall Treatment Burden For Patients. Therefore, Selecting AnEasy-To-Use, Safe, And Cost-Effective Automatic Injection Pen Is Nec-essary For Reducing Medical Expenses And Enhancing The Quality Of Treatment.

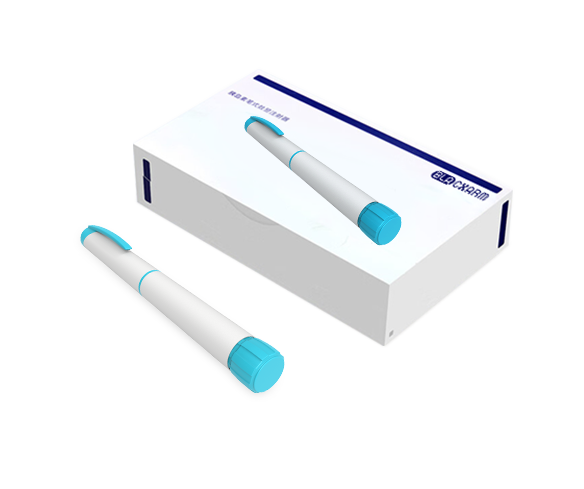

Insulin pens Product description

1. Controls

Pressure skin stimulation, easy to use, ergonomic design.
Automatic needle insertion and administration to achieve a consistent injection experience.
Automatic needle withdrawal function, no additional injection training required.
Before, during and after use, the needle is hidden to help eliminate needle fear.
A "click" sound at the beginning and end of the injection to provide effective auditory feedback.
Fully transparent and visible, can clearly observe the visual feedback of the liquid medicine and the end of the injection.
Unique waist line and anti-roll design, more comfortable to hold.

5. Customization and manufacturing

With large-scale manufacturing pricing, so that your drugs in a unique cost competitive advantage.
Short delivery time, accelerate drug R&D to market.
Pen body design and color, can provide customized services.

2. Platforming

Suitable for ISO standard 1ml slim pre-potting syringe.
Ergonomic pen cover design, compatible with different types of hard and soft caps .

3. Compliance

Invention patents, safety and risk reduction.
Provide technical documents for regulatory declaration, human factors engineering research data, etc.

4. Secure

Fully transparent integrated design can improve product safety to prevent the syringe from being damaged during transportation or falling.
Unique design, effectively reduce the risk of glass breakage.

Insulin pens Product descriptionProduct description

1. Controls

Pressure skin stimulation, easy to use, ergonomic design.
Automatic needle insertion and administration to achieve a consistent injection experience.
Automatic needle withdrawal function, no additional injection training required.
Before, during and after use, the needle is hidden to help eliminate needle fear.
A "click" sound at the beginning and end of the injection to provide effective auditory feedback.
Fully transparent and visible, can clearly observe the visual feedback of the liquid medicine and the end of the injection.
Unique waist line and anti-roll design, more comfortable to hold.

2. Platforming

Suitable for ISO standard 1ml slim pre-potting syringe.
Ergonomic pen cover design, compatible with different types of hard and soft caps .

3. Compliance

Invention patents, safety and risk reduction.
Provide technical documents for regulatory declaration, human factors engineering research data, etc.

4. Secure

Fully transparent integrated design can improve product safety to prevent the syringe from being damaged during transportation or falling.
Unique design, effectively reduce the risk of glass breakage.

5. Customization and manufacturing

With large-scale manufacturing pricing, so that your drugs in a unique cost competitive advantage.
Short delivery time, accelerate drug R&D to market.
Pen body design and color, can provide customized services.

Insulin pens Product SpecificationProduct Specification

Product characteristicscharacteristics

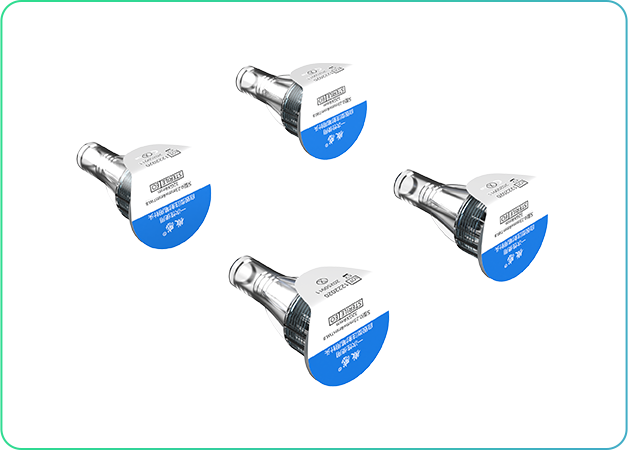

The Micro-sensing needle adopts thin-wall technology and silicone oil lubrication design to reduce the friction between the needle body and the skin, so as to make puncture easier.
It is Suitable for a wide range of insulin needle specifications, matching many common insulin injection pens on the market

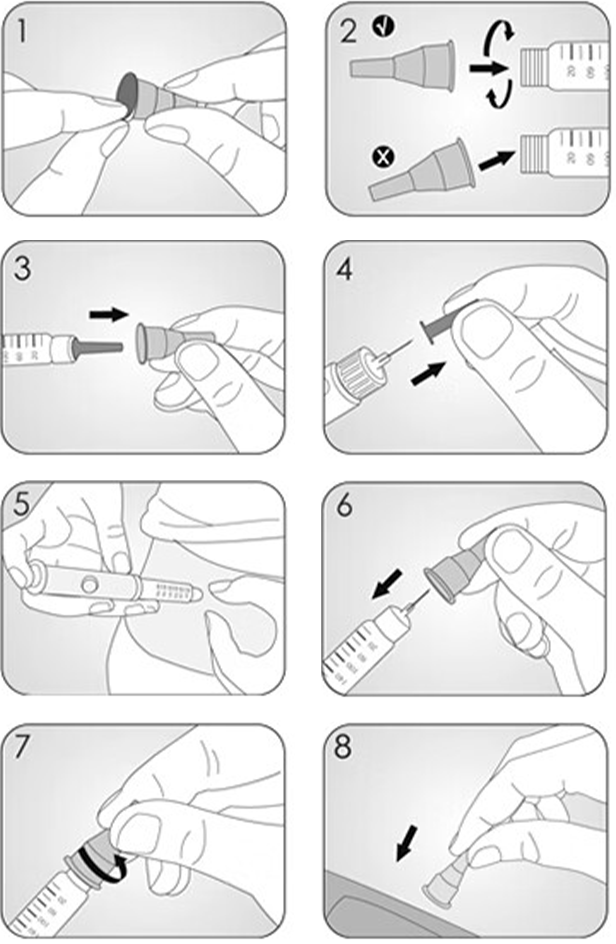

Installation and UsageInstallation and Usage Instructions

(1)
Remove the protective film from the pen.
(2)
Align the needle base with the pen refill, secure it onto the insulin injection pen.
(3)
Carefully remove the shell and sheath to avoid bending the needle. Discard the sheath.
(4)
Hold the injection pen with the needle tip facing upwards, tap it to allow air bubbles to rise, then press until liquid is discharged from the tip of the needle.
(5)
Follow instructions for selecting insulin dosage on the insulin pen.
(6)
After cleaning injection site, use appropriate technique for injecting (refer to China Diabetes Drug Injection Technical Guide (2016 edition), or follow medical expert's advice). Press button fully, hold for at least 10 seconds before removing needle.
(7)
Attach shell onto used insulin needle, unscrew and discard into sharps disposal container.
